Extruded Aluminum Canopy

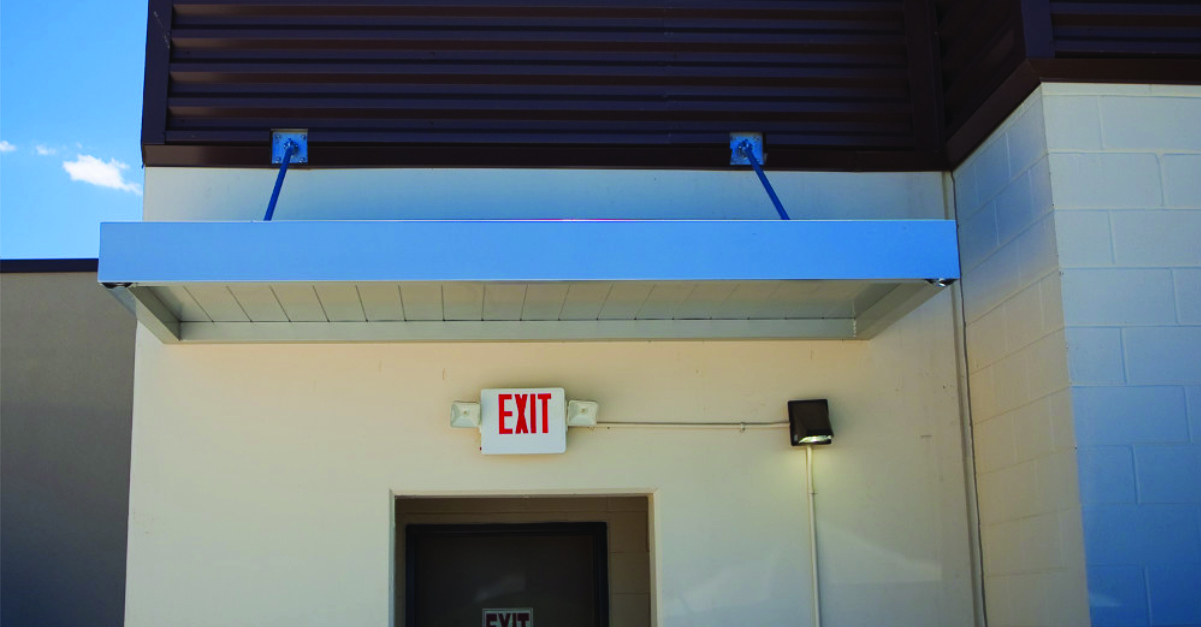

Helios Aluminum Canopy
As our most popular option, the Helios is a sleek, fully prefabricated extruded aluminum system featuring internal drainage and clean, recessed soffits. It ships nationwide and can cantilever up to 5 feet without overhead supports, making it the premier choice for a modern, seamless aesthetic.

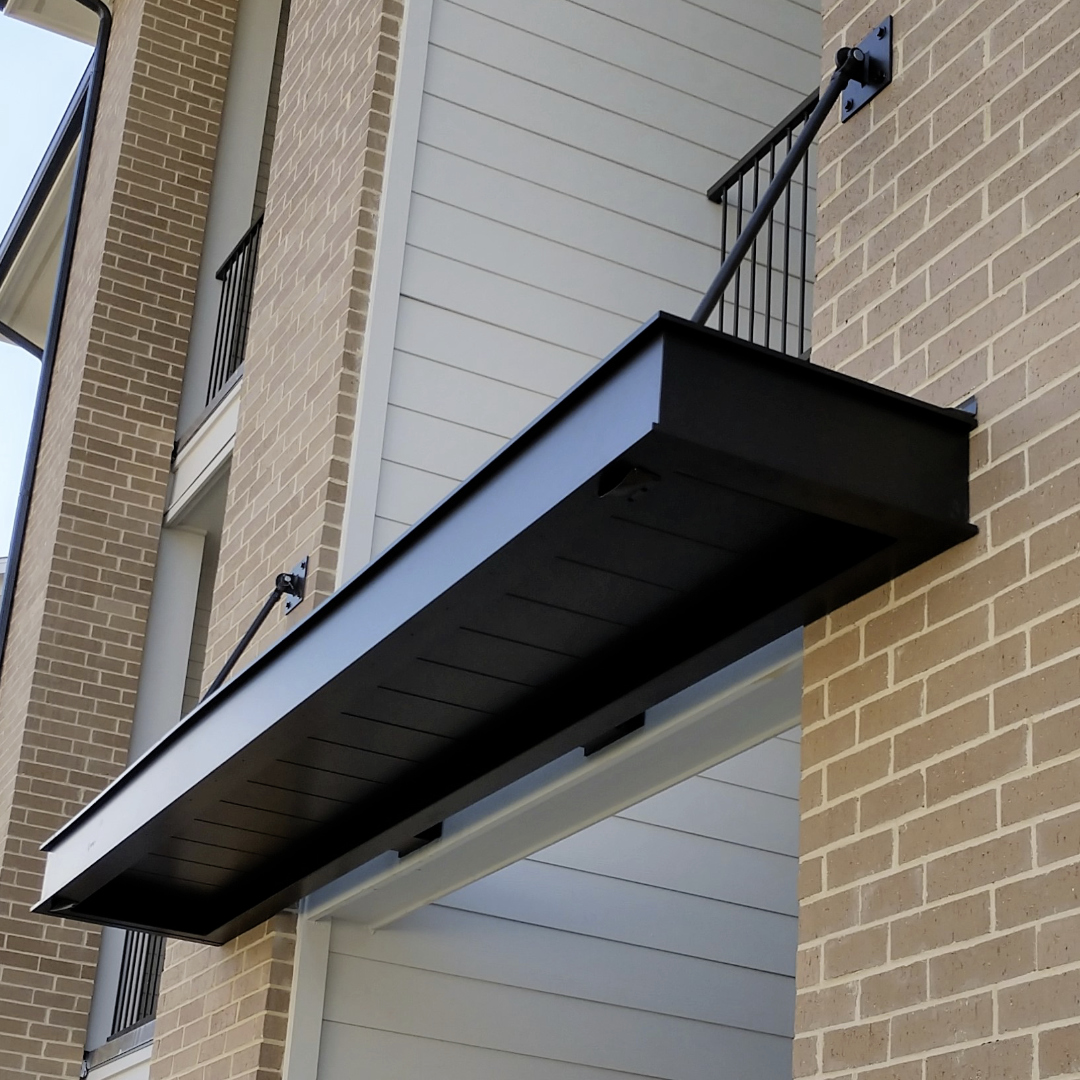

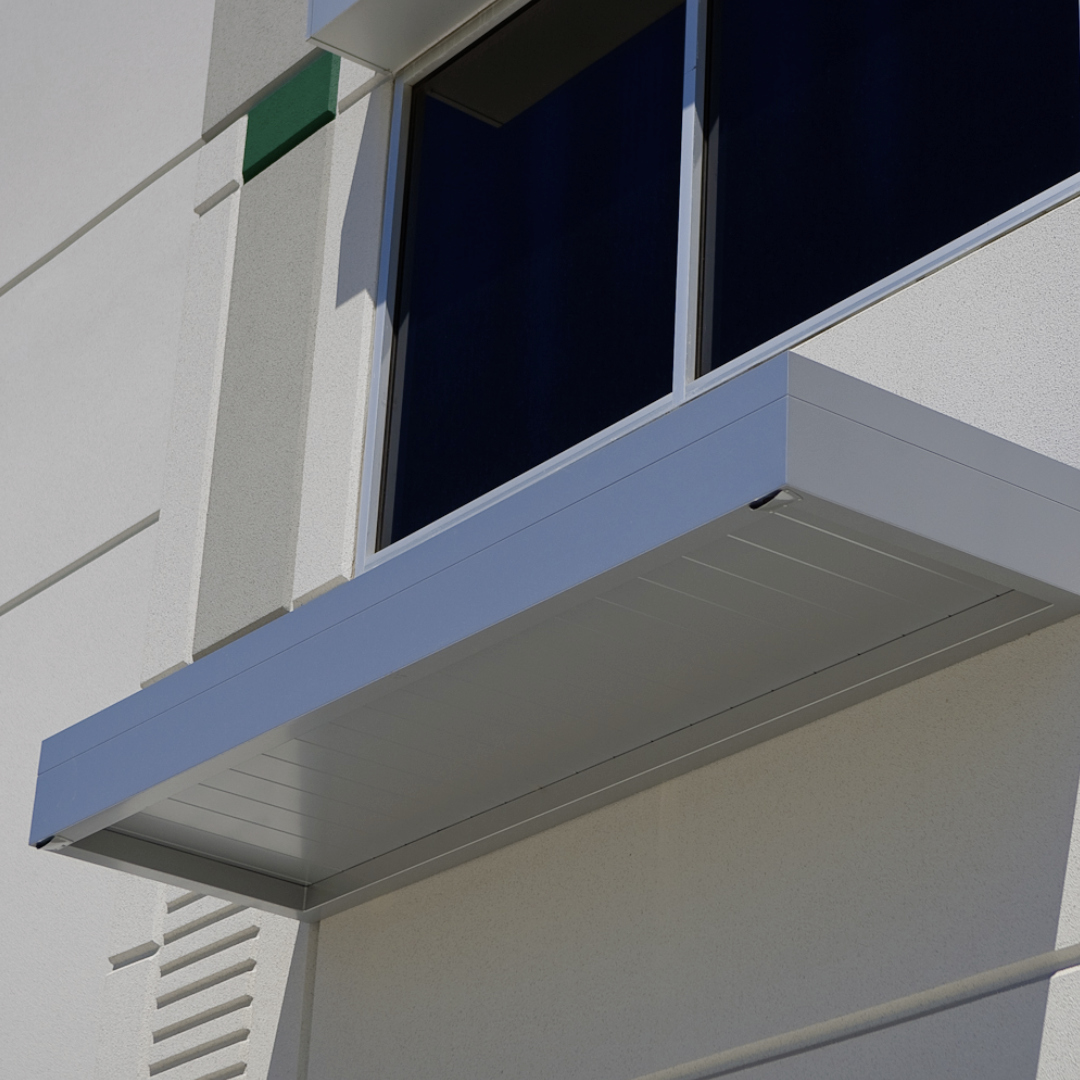

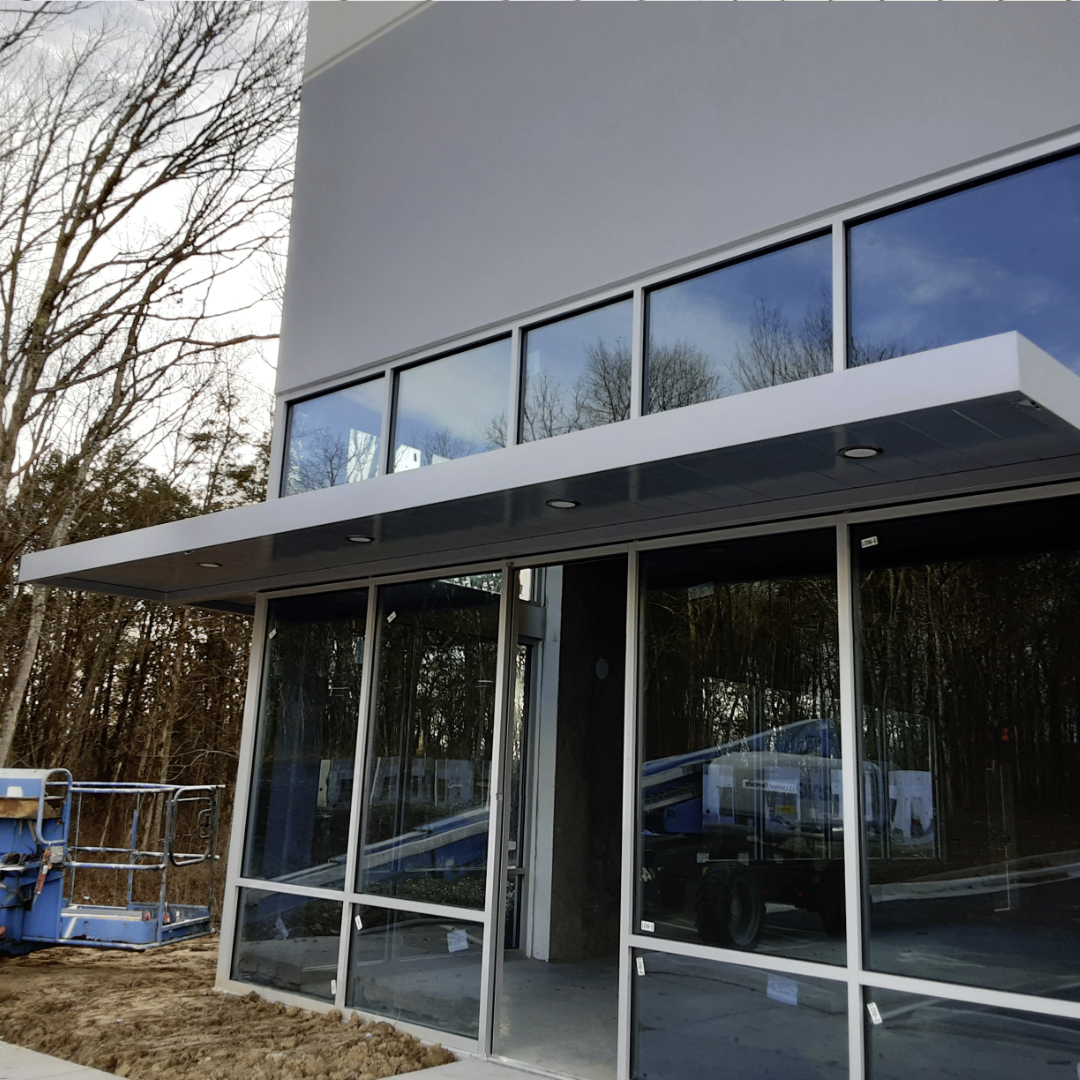

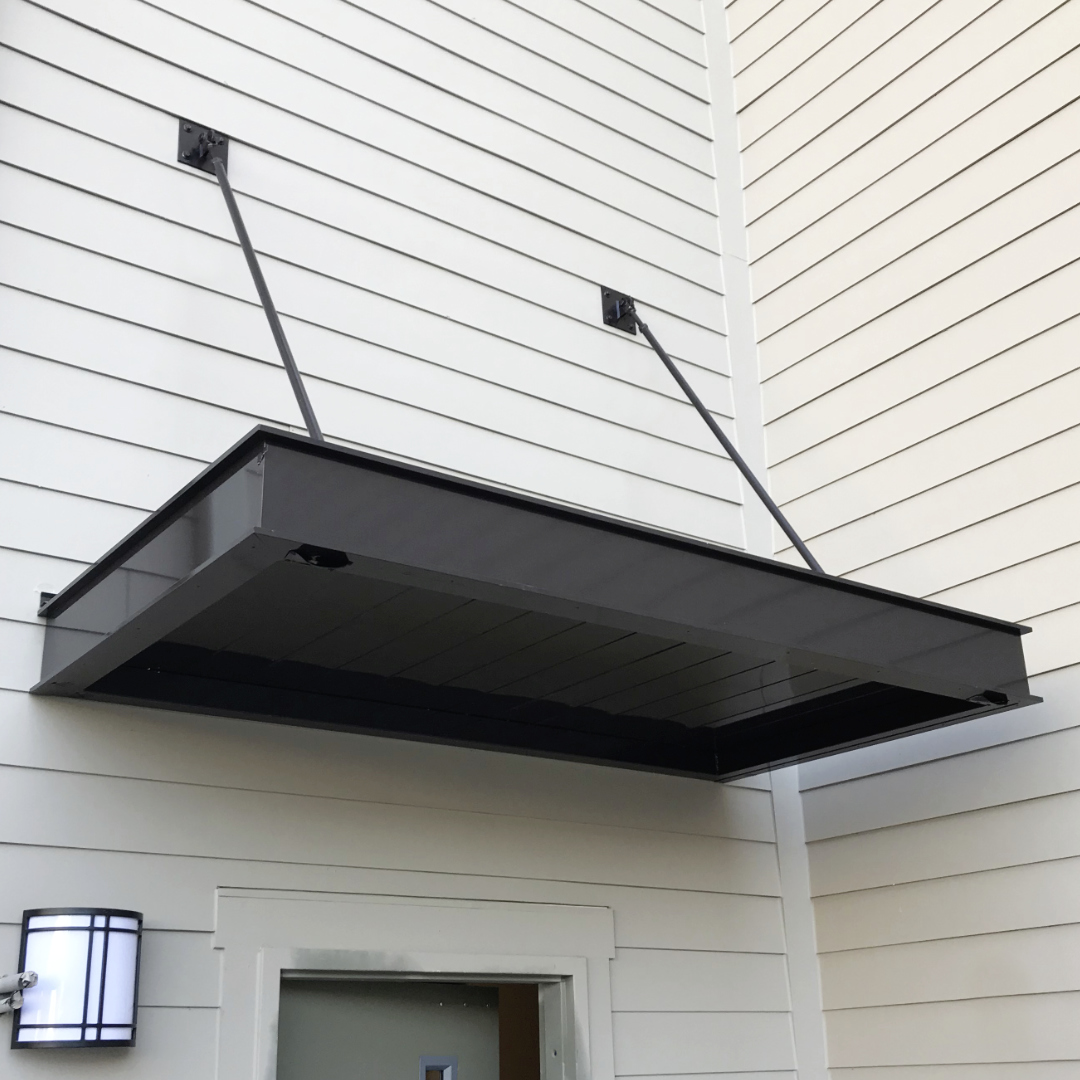

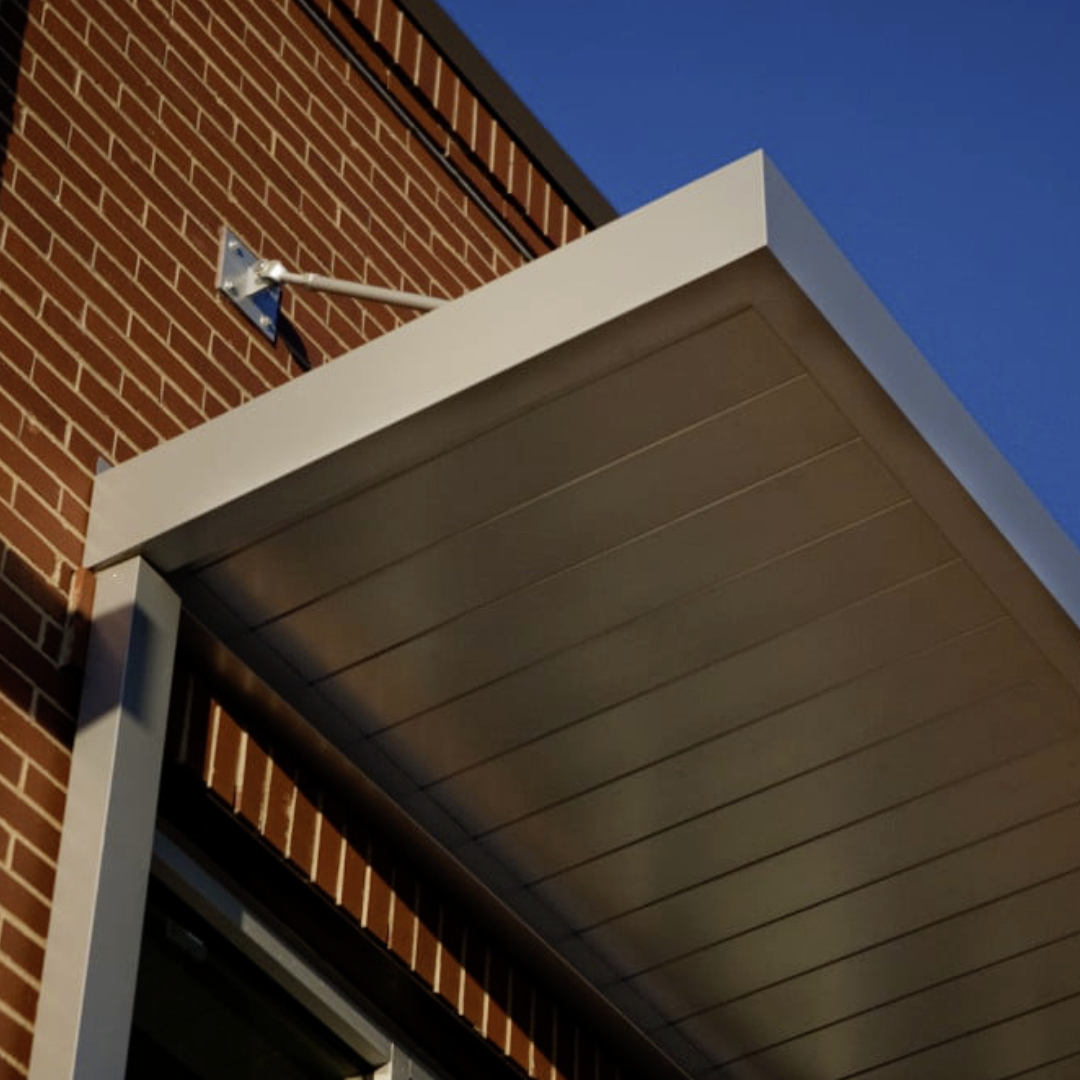

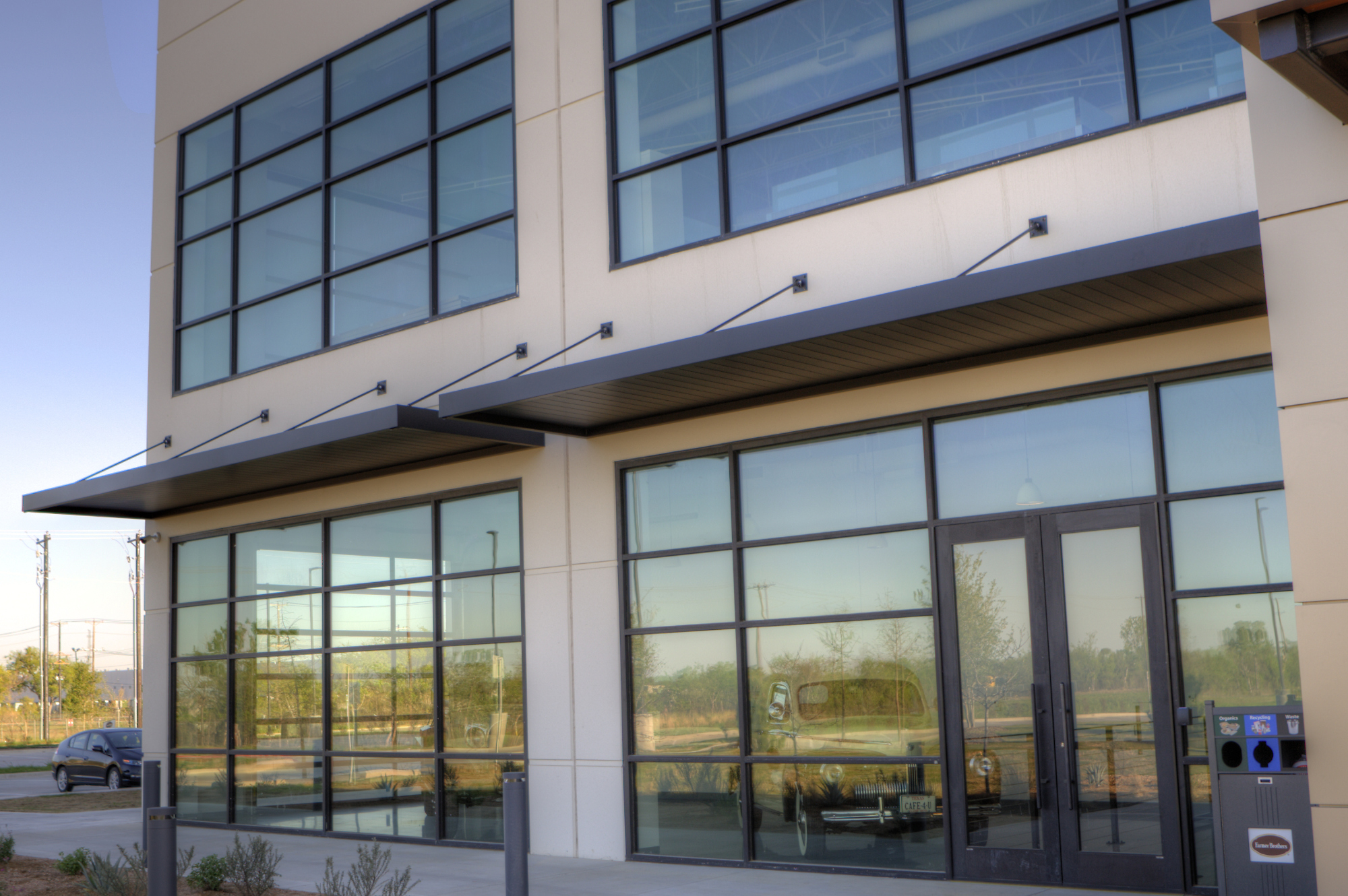

Projects Using Helios Canopies
Hidden Rain Gutter
No Supports
C Fascia
Extended Helios Unit
C Fascia
Finish Options
Mill Aluminum
Powder Coat
Kynar
Anodized

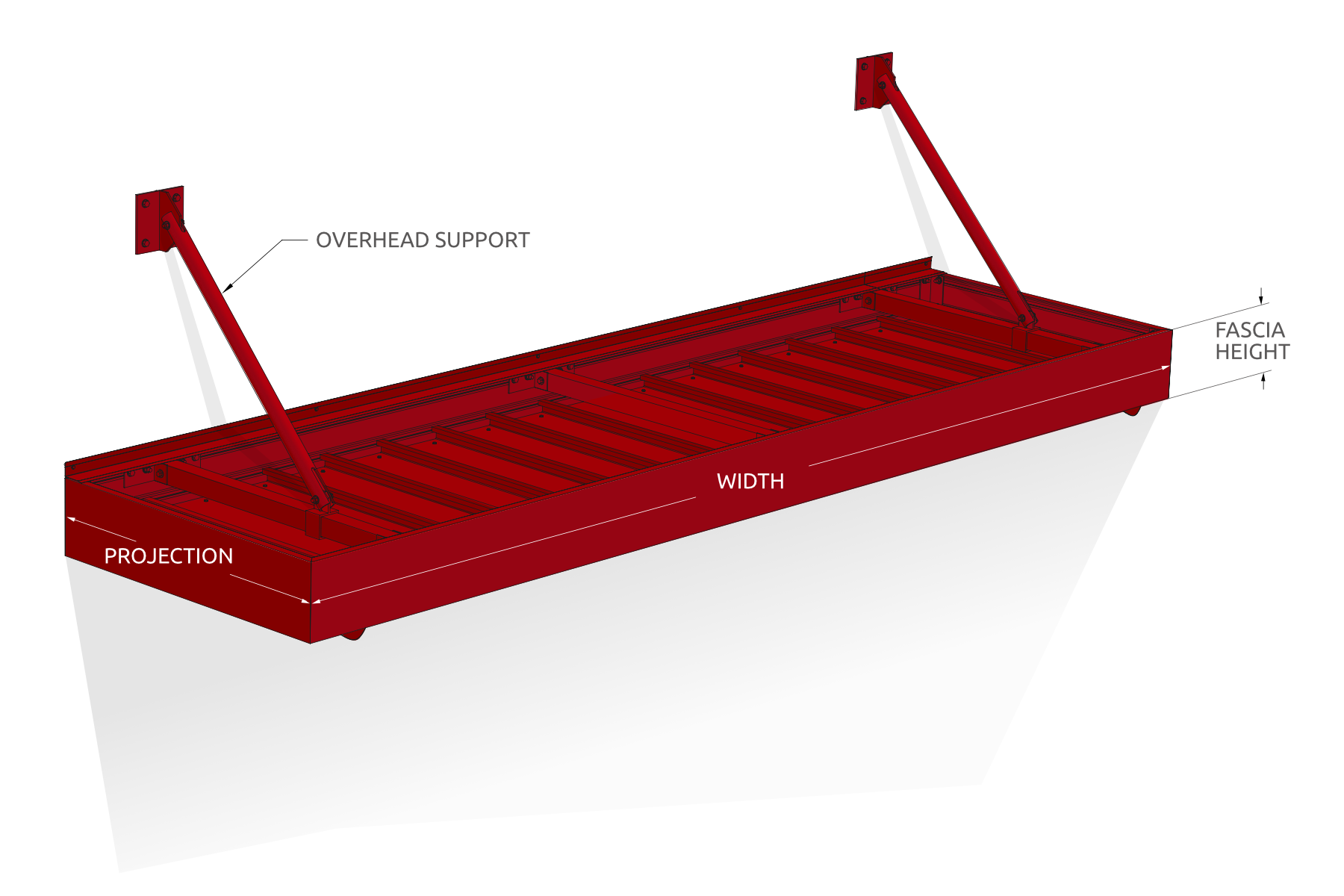

Standard Construction
Material
6063-T5 Extruded Aluminum
Fabrication Method
Welded & Mechanically Fastened
Deck Pan
1" x 12" Roll Formed
Fascia Profile
3" x 8" Gutter Fascia
Projection
12" - 144"
Width
Single Unit up to 288"
Multiple Units Unlimited
Scuppers
Stamped Aluminum, 2 per Unit
Brackets
6" x 6" Extruded Aluminum Brackets
Flashing
Surface Mount with Sealant
Turnbuckle
3/4" Sch40 Steel Pipe, Zinc Plated
Mounting
Concealed
Customization Options
The Helios Canopy system has many options to meet the specific needs of your project. This includes varying deck pan designs, overhead supports, lighting, fascia shapes and sizes, and finishes.
Gutter Fascia Sizes
(standard)
Fascia Add-ons
Available for any fascia size.
w 1″ Offset
w Double Reveal
Deck Pan
Flush Deck Pan
Flush Deck Pan
Turnbuckle
w Steel Yokes
Standard Span: 12″ – 72″
Helios Canopy Components
Infill
Deck pan, Polygal, or Louvered
Fascia Sizes
2", 4", 6", 8", 10", & 12"
Lighting
LED, Fluorescent, etc.
Overhead Supports
Optional
Helios Architectural Files
Working together, let’s bring your design concept to life.
